A.) The following software tools are available under Ansys:

• Gateway
• Smartspice
• Expert
• SmartDRC
• SmartLVS
• UTMOST 4
• Smartview
• Hipex RC

For more details, refer to the below link:

https://c2s.gov.in/pdf//Ansys%20List%20of%20Products_Updated.pdf

A.) To access Silvaco tools, the following port numbers must be opened in the firewall of participating institutions:

• TCP Port: 27000 and 27001

A.) If you are facing issues with license checkout, follow these steps:

Check your internet connection

• Verify that your system has an active internet connection.
• Try pinging the license server:
• ping 14.139.1.126

Check for whitelisting of your IP

• Check if your IP is whitelisted by visiting:
• http://14.139.1.126/

Make sure that your system is connected to the licensing server

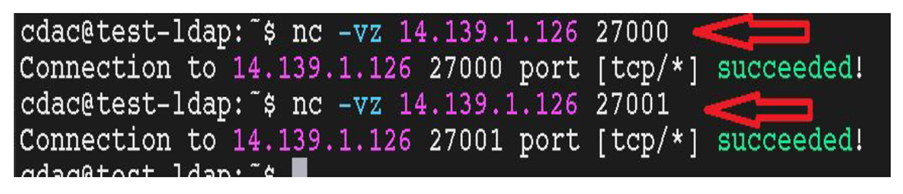

• Run the following commands from your Linux system to test the connection:
• nc -vz 14.139.1.126 27000
• nc -vz 14.139.1.126 27001

• The above-mentioned commands will test the connection to the server and provide feedback on whether the specified ports are open and accessible.
• If the connection is successful, you will receive a message indicating the port is connected to the licensing server as shown in the above snapshot. If not, you may see an error message indicating connection timeout.
• Check with your network administrator for port opening if connection timeout issue occurs.
